Reinforced Bottom Plate
A reinforced 5mm bottom plate improves durability and provides additional protection in uneven terrain and off-road driving conditions.
PROJECT // PRIMARY FUEL SYSTEM UPGRADE
REV. 2026 / V17.1
DEFENDER 110 FUEL TANK 185L
Direct-replacement fuel tank engineered to boost capacity while retaining OEM fitment for Defender 110 platforms.
TOTAL CAPACITY
185L
ESTIMATED RANGE
630km - 720km+
PRIMARY MATERIAL
Aluminum-Magnesium Alloy
Vehicle Fitment
MODELDEFENDER 110
YEAR2020
ENGINE3.0T/5.0T
FUELGasoline
DATA SHEET
TECHNICAL SPECIFICATIONS
ENGINEERING DATA LOG
| MATERIAL | Aluminum-Magnesium Alloy |
|---|---|
| MOUNT POSITION | REPLACEMENT |
| NET WEIGHT | 45.5KG |
| GROUND CLEARANCE | NO LOSS-HIGH CLEARANCE |
| COATING | Textured Black Powder Coat |
Capacity & Range
TOTAL FUEL VOLUME
185L
Factory: 90 + FK: 95L
EST. RANGE INCREASE
630km - 720km+
Fuel System Logic
SYSTEM TYPE
Dual-Chamber Siphon Replacement
Premium high-capacity saddle-style replacement tank precision-engineered for the 2020+ Land Rover Defender 110 (3.0T/5.0T). Designed as a complete master upgrade that expands total capacity to a massive 185L, this innovative setup directly mirrors the Defender's factory dual-chamber saddle geometry to clear the central drivetrain flawlessly. By 100% retaining and utilizing your factory dual fuel-level senders, OEM primary fuel pump, and original crossover siphon lines, it preserves the exact mechanical logic and stability of Land Rover's engineered fuel delivery system for a reliable, codes-free luxury overland experience.
Gauge Behavior: The factory fuel gauge and DTE (Distance to Empty) display remain functional but will exhibit unique characteristics due to the vehicle's locked OEM software parameters. Upon filling the 185L tank, the vehicle's maximum estimated range (DTE) display will still cap at the factory 90L limit. However, as you drive, the range display and fuel gauge will deplete at a significantly slower rate—typically dropping only 1km for every 2km of actual distance traveled. When the low-fuel warning light triggers on your dashboard, the system leaves a generous physical reserve of approx. 25L - 30L remaining in the dual-chamber tanks, providing an exceptional safety margin for remote overland travel.
Structure & Protection Design
01
02
Internal Baffle System
Internal baffles help control fuel movement inside the tank, improving vehicle stability and fuel pickup reliability on uneven terrain.
03
Heat Shield Protection
Integrated heat shielding reduces exhaust heat exposure and helps protect fuel system components from excessive temperature.
04
Strap Shield Protection System
Recessed mounting pockets allow the tank straps to sit flush within protected zones, reducing the risk of strap damage or snagging when sliding over obstacles off-road.
05
Quick-Connect Fuel Line Fittings
Equipped with OEM-style quick-connect fittings for secure sealing, simplified installation, and reliable fuel line connections.
06
Integrated Drain Port
An integrated drain port allows fuel to be safely drained for maintenance, repairs, or long-term storage without removing the tank.
07
Direct Bolt-On Installation
Designed to mount to factory locations using original mounting points. No chassis cutting, drilling, or permanent modifications required.
08
Individual Serial Identification
Each tank is marked with a unique serial number for product identification, quality tracking, and authenticity verification.
Weight & Material Engineering
Designed to reduce weight without compromising strength, ideal for long-range and overland use.
ENGINEERING CHOICE
FK ALUMINUM TANK
45.5KG
- MATERIALAL 5052
- PROTECTIONNATIVE ANTI-RUST
- BEST FOROVERLANDING
TYPICAL ALTERNATIVE
TRADITIONAL STEEL
126KG
- MATERIALMILD STEEL
- COATINGEASY TO CORRODE
- IMPACTHIGH CHASSIS LOAD
TECH DOC // INSTALLATION
Installation & Technical Notes
EST. TIME
4 HOURS
DIFFICULTY
100% Bolt-on
CHASSIS MOD
NONE
EXHAUST MOD
NONE
PUMP MOD
NONE
Installation Video Guide

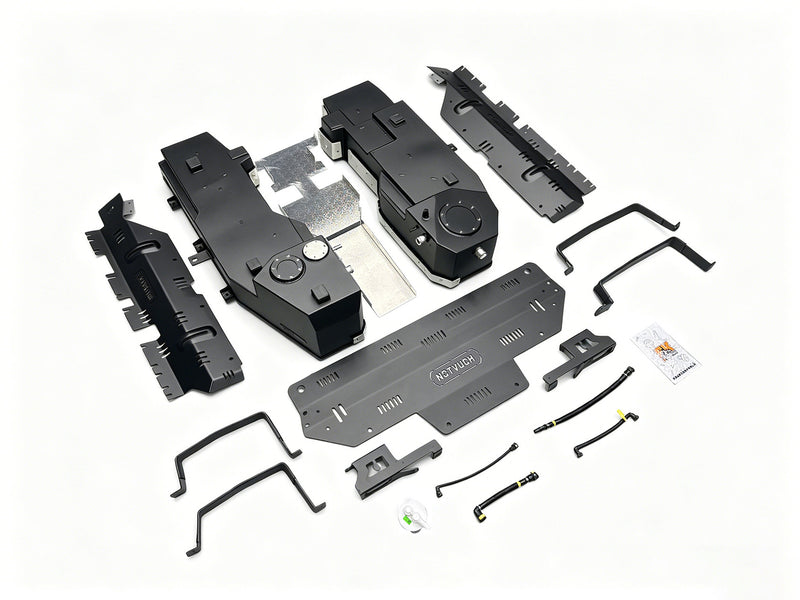

What's In The Box
185L Main Tank: Direct replacement for the factory unit.
Mounting Hardware: Fully factory-compatible brackets and bolts.
No Complexity: No additional control modules or switches.
Protection: Integrated heat shield for proximity components.
OEM Standards: Vehicle-specific fuel lines and fittings included.
Mounting Hardware: Fully factory-compatible brackets and bolts.
No Complexity: No additional control modules or switches.
Protection: Integrated heat shield for proximity components.
OEM Standards: Vehicle-specific fuel lines and fittings included.
Global Shipping
Available to most countries. Hassle-free international delivery.
Secure Packaging
Reinforced packaging engineered for heavy-duty fuel systems and long-distance maritime transport.
Delivery Time
Estimated 25–40 days depending on destination, shipping method, and local logistics conditions.
LONG-TERM ASSURANCE
3-YEAR WARRANTY & SUPPORT
Built to support long-term ownership, not just short-term trips. We provide transparent coverage for the life of your expedition rig.
TANK BODY
3-YEAR STRUCTURE
Full structural coverage against manufacturing defects under normal off-road usage.
COMPONENTS
LIFETIME SUPPORT
Ongoing technical support and replacement parts availability for original owners.
