54L EXTENDED RANGE.
HYBRID-SAFE BY DESIGN.
Add driving range to your LX700h without touching the factory hybrid control system. This 54L side-mounted auxiliary tank is engineered as a low-intervention, OEM-consistent solution.
HYBRID-SAFE SYSTEM
No additional pumps, switches, or electronic modules. The passive siphon-based transfer avoids interference with the hybrid powertrain logic.
NON-INVASIVE INSTALL
Installs using factory mounting points with OEM-standard fittings. Preserves the vehicle's structural integrity and long-term chassis health.
LIGHTWEIGHT BY INTENT
Constructed from aluminum-magnesium alloy to minimize added mass (~12kg dry), maintaining the precise balance of the hybrid platform.

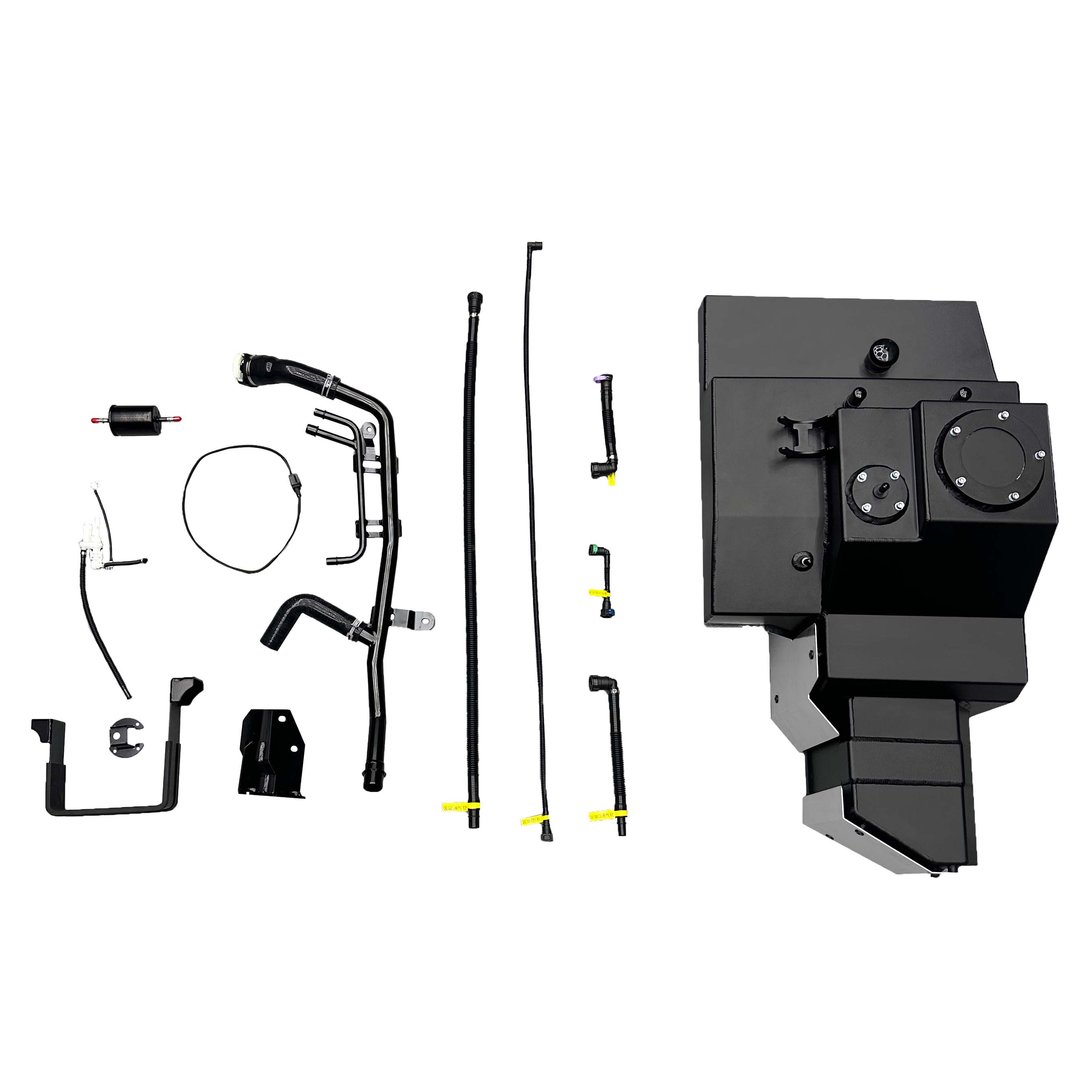

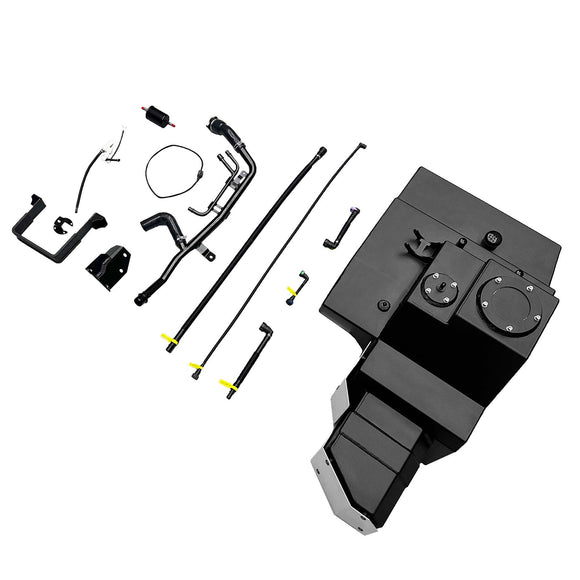

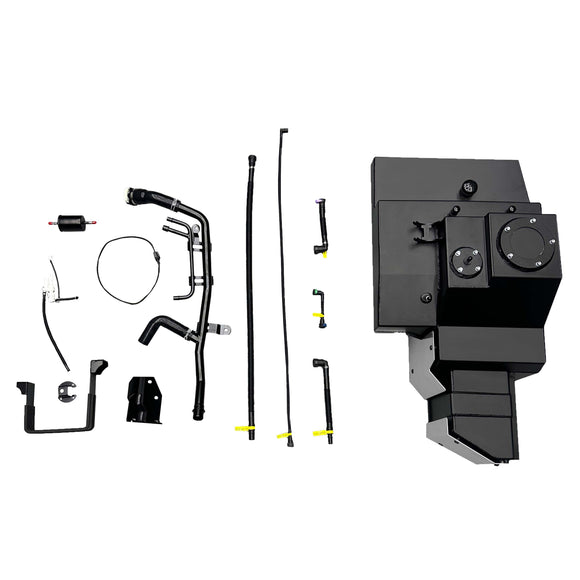

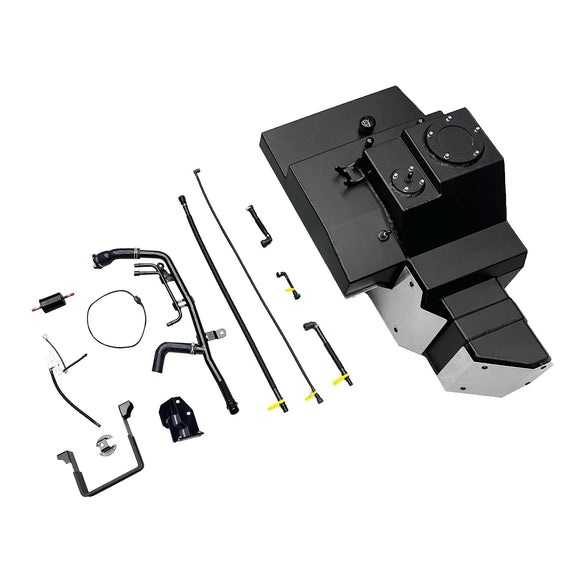

WHAT'S IN THE BOX
Lexus Standard. A complete auxiliary fuel system designed for permanent, everyday use.
- NO Electronic Add-ons: No pumps or control units.
- NO Main Tank Modification: Factory tank body remains untouched.

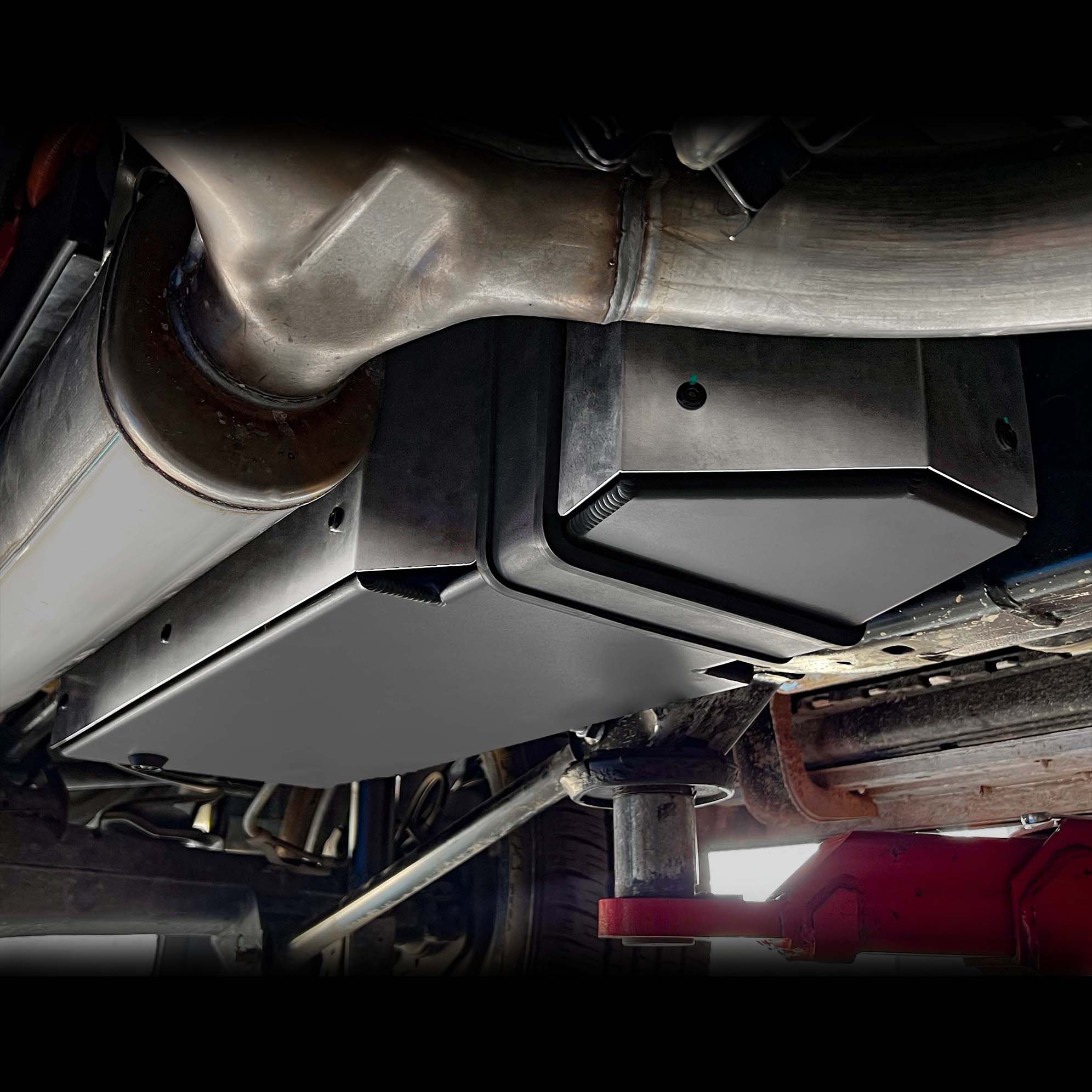

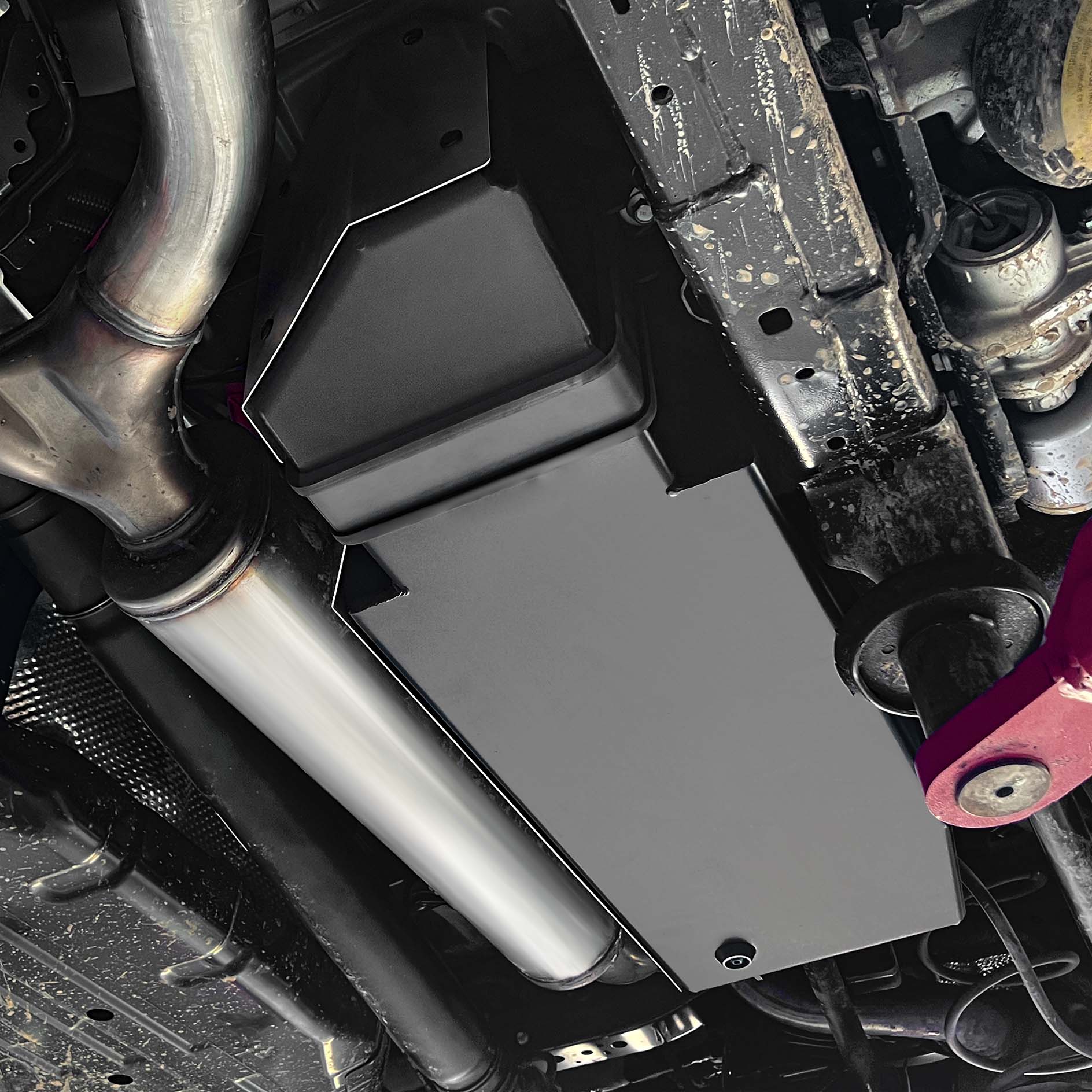

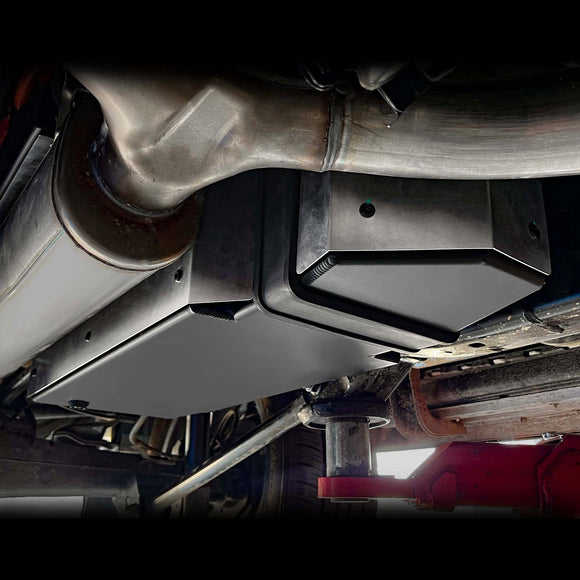

- NO Interior Space Loss: Side-mounted underbody layout with bolt-on installation. No cutting or welding to the chassis or vehicle body.
- Complete Kit: Includes 54L tank, siphon hardware, and fittings.
Fuel Pump Modification (Installation Note)
To integrate the auxiliary fuel tank system, a siphon valve is installed onto the original fuel pump assembly. This requires slightly enlarging the existing access slot on the OEM fuel pump housing to approximately 5 cm, as shown below.
This modification does not affect the operation, sealing, or reliability of the factory fuel pump, and does not involve any cutting or welding of the vehicle chassis or body structure.
INSTALLATION VIDEO
FUEL MONITORING & LOGIC
Two-Stage Process:
Stage 1: Fuel is drawn from the aux tank. Dashboard range will decrease while the main fuel needle stays stationary.
Stage 2: When the main needle begins to drop, the aux tank is empty and the vehicle is now on its main supply.
54L AUX + 65L MAIN (EST.)
TECHNICAL SPECIFICATIONS
| Application | Lexus LX700h (3.5TT Hybrid) |
|---|---|
| Coating | Powder-coated |
| Fuel Type | Gasoline |
| Material | Aluminum-Magnesium Alloy |
| Fuel Transfer | Siphon Jet Pump System |
| Capacity | 54 Liters(14.27 US Gallons) |
| Tank Net Weight | Approx. 12 kg |
| Side Plate Thickness | 3mm |
| Base Plate Thickness | 5mm |
| Installation | 2.5 Hours |
RANGE EXPANSION PATH
Aux Tank Only
No main tank modification. A balanced, low-risk solution for daily driving and regional travel.
Main + Aux Combo
For extended remote travel where fuel stops are nonexistent. *Consult for custom requirements.
3-YEAR WARRANTY & SUPPORT
Built to support long-term ownership, not just short-term trips. We provide transparent coverage for the life of your expedition rig.
- Tank Body: 3-Year structural warranty.
- Fuel Lines: Lifetime warranty against manufacturing defects.
- Policy: Applies under normal usage conditions for the original purchaser.
“Sophistication meets autonomy.”
